Ball screw support bearings
Precision ball screw bearings are one-way thrust angular contact ball bearings with a contact angle of 60°.
Keywords:
Ball screw support bearings
Series:
Product Details
Product Overview and Performance Features
Precision ball screw bearings are one-way thrust angular contact ball bearings with a contact angle of 60°. They have the characteristics of high precision, high speed, high axial stiffness, low friction, long life, and good instantaneous high and low speed conversion performance. The bearing is particularly suitable for supporting ball screw pairs and similar transmission elements of high-speed precision CNC machine tools.
Product Series and Dimensional Standards
Precision ball screw bearings include four product series: 7602, 7603, BS, and BSS.
The standard metric 7602 and 7603 size series conform to the JB/T8564 standard, with inner diameters ranging from 12mm to 130mm.
BS represents the non-standard metric series.
BSS represents the imperial series.
Load Capacity and Configuration
Ball screw bearings can withstand large axial loads in a single direction, and can also withstand certain radial loads. These bearings are usually used in duplex or multi-unit arrangements, and the assembly method is the same as that of angular contact ball bearings.
Technical parameters of ball screw support bearings
Bearing model | Dimensions (mm) | Rated load (KN) | Limit speed (r/min) | MAX axial load (KN) | Preload (KN) | Friction torque (N.mm) | Weight (kg) | |||||
d | D | B | rsmin | a | Ca | Coa | Grease | |||||
760201 | 12 | 32 | 10 | 0.6 | 24 | 11.6 | 12.5 | 17000 | 5.2 | 1.4 | 15 | 0.04 |
760202 | 15 | 35 | 11 | 0.6 | 27 | 12.5 | 15 | 15000 | 6.3 | 1.4 | 20 | 0.05 |
760203 | 17 | 40 | 12 | 0.6 | 31 | 16.6 | 20 | 13000 | 8.5 | 1.7 | 30 | 0.07 |
760204 | 20 | 47 | 14 | 1.0 | 36 | 19.3 | 25 | 12000 | 10.6 | 2.3 | 50 | 0.13 |
760205 | 25 | 52 | 15 | 1.0 | 41 | 22 | 30.5 | 11000 | 13.2 | 2.5 | 65 | 0.16 |
760206 | 30 | 62 | 16 | 1.0 | 48 | 26 | 39 | 9000 | 17.0 | 2.9 | 85 | 0.24 |
760207 | 35 | 72 | 17 | 1.1 | 55 | 30 | 50 | 8000 | 21.2 | 3.3 | 115 | 0.34 |
760208 | 40 | 80 | 18 | 1.1 | 62 | 37.5 | 64 | 7000 | 28.0 | 4.3 | 170 | 0.44 |
760209 | 45 | 85 | 19 | 1.1 | 66 | 38 | 68 | 6700 | 28.0 | 4.5 | 190 | 0.50 |
760210 | 50 | 90 | 20 | 1.1 | 71 | 39 | 75 | 6300 | 31.5 | 4.6 | 230 | 0.57 |
760211 | 55 | 100 | 21 | 1.5 | 78 | 40.5 | 81.5 | 6000 | 33.5 | 4.9 | 250 | 0.75 |
760212 | 60 | 110 | 22 | 1.5 | 86 | 56 | 112 | 5000 | 47.5 | 6.5 | 350 | 0.96 |
760213 | 65 | 120 | 23 | 1.5 | 92 | 57 | 122 | 4800 | 50.0 | 7.0 | 410 | 1.20 |
760214 | 70 | 125 | 24 | 1.5 | 96 | 65.5 | 137 | 4500 | 56.0 | 7.0 | 440 | 1.32 |
760215 | 75 | 130 | 25 | 1.5 | 101 | 67 | 150 | 4300 | 63.0 | 7.6 | 480 | 1.45 |
760216 | 80 | 140 | 26 | 2.0 | 108 | 76.5 | 175 | 4000 | 75.0 | 8.9 | 600 | 1.76 |
760217 | 85 | 150 | 28 | 2.0 | 116 | 86.5 | 196 | 3800 | 85.0 | 10.5 | 760 | 2.19 |
760218 | 90 | 160 | 30 | 2.0 | 123 | 98 | 224 | 3600 | 100 | 11.0 | 790 | 2.69 |
760219 | 95 | 170 | 32 | 2.1 | 131 | 110 | 255 | 3400 | 112 | 12.5 | 950 | 3.26 |
760220 | 100 | 180 | 34 | 2.1 | 138 | 122 | 285 | 3200 | 125 | 14.0 | 1100 | 3.91 |
760222 | 110 | 200 | 38 | 2.1 | 153 | 146 | 355 | 2800 | 153 | 16.4 | 1400 | 5.5 |
760224 | 120 | 215 | 40 | 2.1 | 165 | 176 | 425 | 2600 | 185 | 20.6 | 2000 | 6.5 |
760226 | 130 | 230 | 40 | 3.0 | 176 | 180 | 455 | 2400 | 200 | 20.6 | 2100 | 7.4 |
760304 | 20 | 52 | 15 | 1.1 | 39 | 24.5 | 32 | 11000 | 14.0 | 2.9 | 60 | 0.17 |
760305 | 25 | 62 | 17 | 1.1 | 46 | 28.5 | 41.5 | 9000 | 18.0 | 3.3 | 85 | 0.28 |
760306 | 30 | 72 | 19 | 1.1 | 53 | 34.5 | 55 | 8000 | 23.6 | 4.3 | 130 | 0.41 |
760307 | 35 | 80 | 21 | 1.5 | 60 | 36.5 | 61 | 7000 | 26.5 | 4.8 | 170 | 0.55 |
760307X3 | 35 | 90 | 23 | 1.5 | 68 | 50 | 83 | 6300 | 35.5 | 5.6 | 225 | 0.81 |
760308 | 40 | 90 | 23 | 1.5 | 68 | 50 | 83 | 6300 | 35.5 | 5.6 | 225 | 0.76 |
760309 | 45 | 100 | 25 | 1.5 | 75 | 58.5 | 104 | 5600 | 45.0 | 7.0 | 300 | 1.02 |
760309X3 | 45 | 110 | 27 | 2.0 | 83 | 69.5 | 127 | 5000 | 53.0 | 7.6 | 360 | 1.41 |
760310 | 50 | 110 | 27 | 2.0 | 83 | 69.5 | 127 | 5000 | 53.0 | 7.6 | 360 | 1.33 |
760311 | 55 | 120 | 29 | 2.0 | 90 | 78 | 146 | 4800 | 63.0 | 8.8 | 460 | 1.69 |
760312 | 60 | 130 | 31 | 2.1 | 98 | 88 | 166 | 4500 | 75.0 | 10.0 | 540 | 2.12 |
760313 | 65 | 140 | 33 | 2.1 | 1.5 | 100 | 196 | 4000 | 90.0 | 12.0 | 700 | 2.60 |
760314 | 70 | 150 | 35 | 2.1 | 113 | 110 | 220 | 3800 | 95.0 | 12.0 | 760 | 3.16 |
760315 | 75 | 160 | 37 | 2.1 | 120 | 125 | 255 | 3600 | 118.0 | 14.5 | 920 | 3.79 |
760319 | 80 | 170 | 39 | 2.1 | 128 | 137 | 285 | 3400 | 132.0 | 16.0 | 1100 | 4.50 |
760320 | 100 | 215 | 47 | 3.0 | 160 | 193 | 430 | 2600 | 212.0 | 21.5 | 1700 | 8.73 |
760322 | 110 | 240 | 50 | 3.0 | 176 | 250 | 560 | 2400 | 265.0 | 29.3 | 2500 | 11.8 |
760324 | 120 | 260 | 55 | 3.0 | 192 | 265 | 620 | 2200 | 280.0 | 31.3 | 2750 | 14.6 |
760326 | 130 | 280 | 58 | 3.0 | 206 | 290 | 695 | 2000 | 305.0 | 33.7 | 3100 | 18.7 |
Series Related Products
Angular contact ball bearings have a high limit speed and can bear radial loads and axial loads at the same time, as well as pure axial loads.
The Agri Hub Bearing is a fully integrated wheel hub bearing system that is lubricated and sealed for life.
300XDJ05G50 Milling Spindles/motorized spindle with discount
The XDJ series milling spindles have the functions of automatic broach release, precise control of speed and accurate stop. They can process high-speed milling and engraving, thus they are widely used in the processing of conventional parts, tools, molds and wood workpieces.

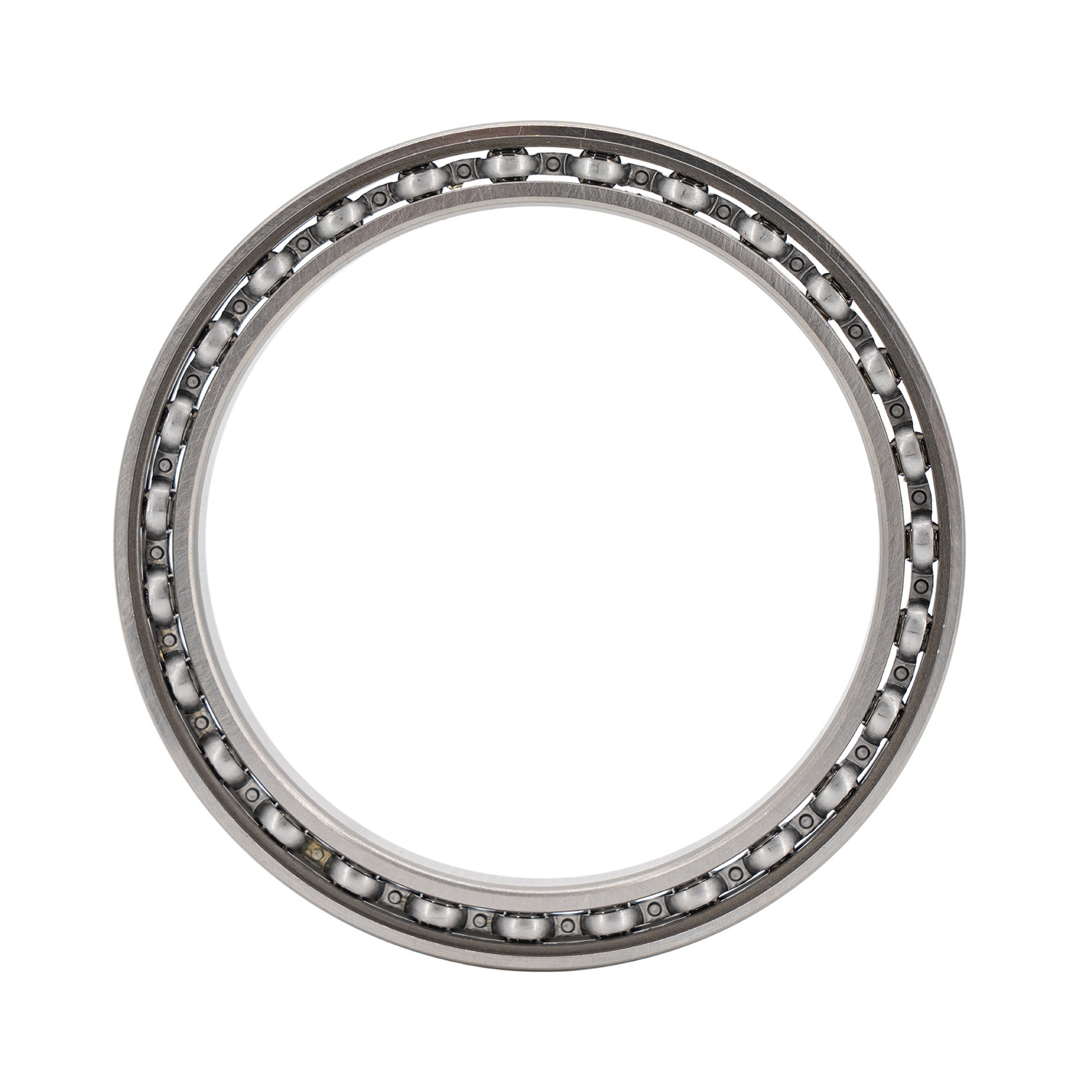

Thin section bearings, are a specially designed bearing, which is characterized by thin inner and outer ring wall thickness, small cross-sectional dimensions, light weight, and high rigidity and load-bearing capacity.
